HIGH BEAM CONTROL SWITCH INSPECTION

id152000021000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

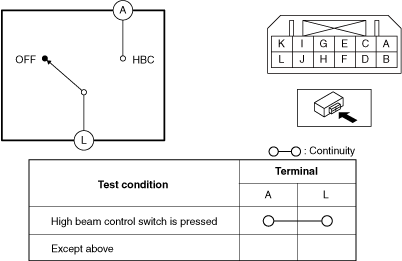

3.  Verify that the continuity between the high beam control switch terminals is as indicated in the table.

a30zzw00006432
