1
|
VERIFY IF Sirius XM SATELLITE RADIO CAN BE RECEIVED
• Switch the ignition ON (engine off or on) and display the Sirius SM satellite radio screen on the center display.
• Can the Sirius XM satellite radio be received?
|
Yes
|
Verify that the repairs have been completed.
|
|
No
|
Go to the next step.
|
|
2
|
VERIFY SIGNAL STRENGTH OF Sirius XM SATELLITE RADIO
• Display the [SiriusXM Authentication] using the diagnostic assist function.
• Does the signal display indicate [NO SIGNAL]?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the Sirius XM satellite radio antenna amplifier.
(Refer to the [ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION] in the workshop manual) (4SD)
(Refer to the [ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION] in the workshop manual) (5HB/WGN)
|
|
3
|
INSPECT Sirius XM SATELLITE RADIO ANTENNA AMPLIFIER CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal. (Refer to the [CONNECTOR INSPECTION] in the workshop manual)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
|
4
|
INSPECT REMOTE TUNER (RT) CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal. (Refer to the [CONNECTOR INSPECTION] in the workshop manual)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
|
5
|

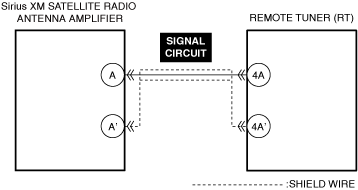

INSPECT Sirius XM SATELLITE ANTENNA AMPLIFIER SIGNAL CIRCUIT FOR SHORT TO GROUND
• Inspect the applicable circuit for a short to ground. (Refer to the [CIRCUIT INSPECTION] in the workshop manual)
• Is the part normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
(Refer to the [ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION] in the workshop manual) (4SD)
(Refer to the [ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION] in the workshop manual) (5HB/WGN)
|
|
6
|
INSPECT Sirius XM SATELLITE ANTENNA AMPLIFIER SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Inspect the applicable part for a short circuit to the power supply. (Refer to the [CIRCUIT INSPECTION] in the workshop manual)
• Is the part normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
(Refer to the [ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION] in the workshop manual) (4SD)
(Refer to the [ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION] in the workshop manual) (5HB/WGN)
|
|
7
|
INSPECT Sirius XM SATELLITE RADIO ANTENNA AMPLIFIER SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Inspect the applicable circuit for an open circuit. (Refer to the [CIRCUIT INSPECTION] in the workshop manual)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
(Refer to the [ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION] in the workshop manual) (4SD)
(Refer to the [ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION] in the workshop manual) (5HB/WGN)
|
|
8
|
DETERMINE MALFUNCTIONING LOCATION
-
Note
-
• If there is no response, move the vehicle outside (in environment where radio signal is not interrupted or obstructed) and verify the display again.
• Replace the Sirius XM satellite radio antenna amplifier. (Refer to the [ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION] in the workshop manual) (4SD)
(Refer to the [ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION] in the workshop manual) (5HB/WGN)
• Display the [SiriusXM Authentication] using the diagnostic assist function.
• Does the signal display indicate other than [NO SIGNAL]?
|
Yes
|
Verify that the repairs have been completed.
|
|
No
|
Put back the Sirius XM satellite radio antenna amplifier that was replaced, replace the remote tuner (RT), and perform the repair completion verification.
(Refer to the [ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION] in the workshop manual) (4SD)
(Refer to the [ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION] in the workshop manual) (5HB/WGN)
(Refer to the [REMOTE TUNER (RT) REMOVAL/INSTALLATION] in the workshop manual)
|
|
Repair completion verification 1
|
VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Clear the DTC recorded in the memory. (Refer to the [CLEARING DTC] in the workshop manual)
• Perform the DTC inspection for the connectivity master unit (CMU). (Refer to the [DTC INSPECTION] in the workshop manual)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
(Refer to the [CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW] in the workshop manual)
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction recurs, replace the remote tuner (RT), then go to the next step. (Refer to the [REMOTE TUNER (RT) REMOVAL/INSTALLATION] in the workshop manual)
|
|
No
|
Go to the next step.
|
|
Repair completion verification 2
|
VERIFY IF OTHER DTCs ARE DISPLAYED
• Perform the DTC inspection. (Refer to the [DTC INSPECTION] in the workshop manual)
• Is a DTC displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
