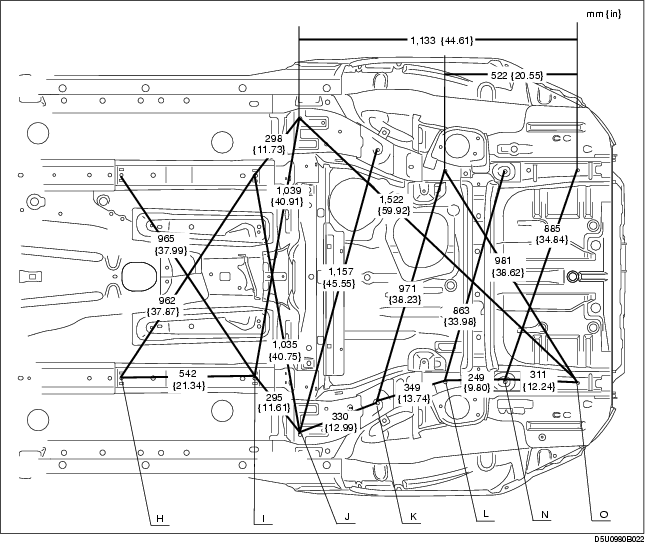

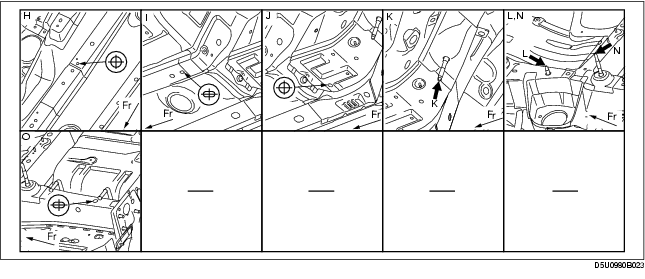

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
H
|
Front B frame datum hole
|
ø12 {0.47}
|
|
I
|
Front B frame datum slot
|
ø12 x 18
|
|
{0.47 x 0.71}
|
|
J
|
Rear side frame datum hole
|
ø16 {0.63}
|
|
K
|
Rear crossmember mounting bolt
|
M14 {0.55}
|
|
L
|
Rear crossmember mounting bolt
|
M14 {0.55}
|
|
N
|
Rear crossmember mounting bolt
|
M14 {0.55}
|
|
O
|
Rear side frame datum hole
|
ø16 x 20
|
|
{0.63 x 0.79}
|
