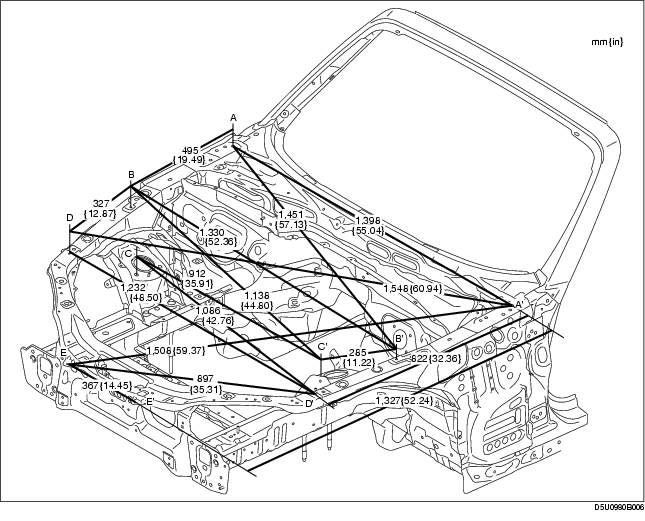

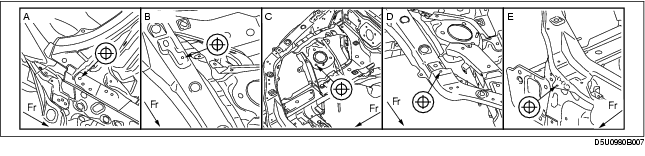

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Bonnet hinge installation hole
|
ø12 {0.47}
|
|
B
|
Front fender installation hole
|
ø7 {0.28}
|
|
C
|
Suspension housing upper datum hole
|
ø13 {0.51}
|
|
D
|
Front fender installation hole
|
ø10 {0.39}
|
|
E
|
Front bumper installation hole
|
ø7 {0.28}
|
