SHROUD LOWER PANEL REMOVAL

1. Remove the shroud lower panel.

Note

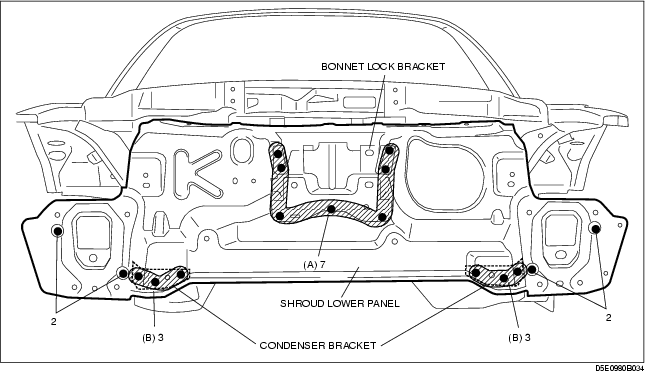

• When removing the bonnet lock bracket and the condenser bracket separately, drill the 7 locations indicated by (A) and the 6 locations indicated by (B).
