APRON REINFORCEMENT COMPONENT REMOVAL

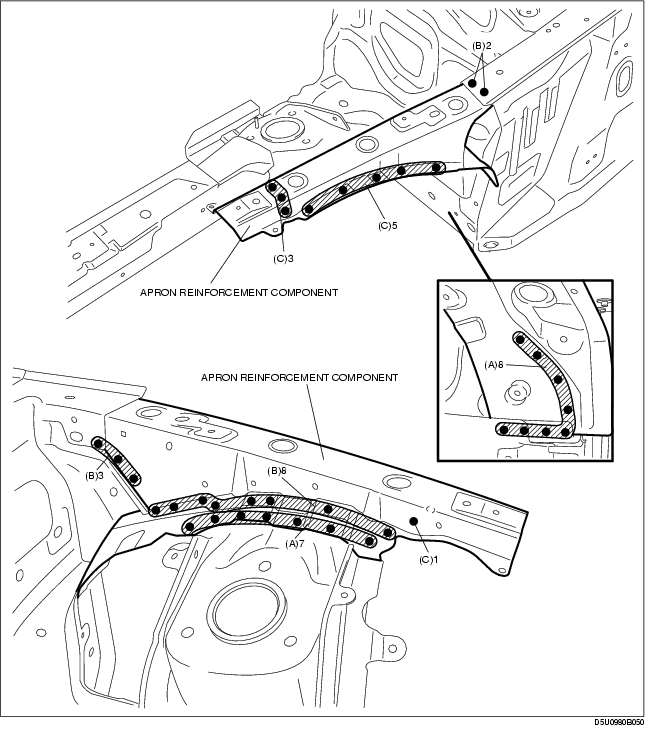

1. Drill the 15 locations indicated by (A) and 13 locations indicated by (B), then remove the apron reinforcement component.

Note

• When removing the apron reinforcement (upper) separately, drill the 12 locations indicated by (B) and the 9 locations indicated by (C).
