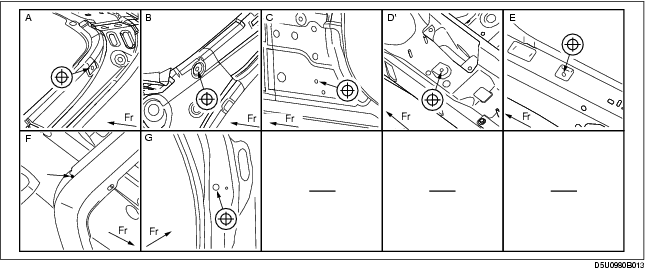

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Front haeder inner datum hole
|
ø7 {0.28}
|
|
B
|
Hinge pillar inner datum hole
|
ø7 {0.28}
|
|
C
|
Hinge pillar inner datum hole
|
ø5.4 {0.21}
|
|
D'
|
Console installation hole
|
ø3.8 {0.15}
|
|
E
|
Side sill inner datum hole
|
ø7 {0.28}
|
|
F
|
Front header notch
|
-
|
|
G
|
Checker pin installation hole
|
ø10 {0.39}
|
