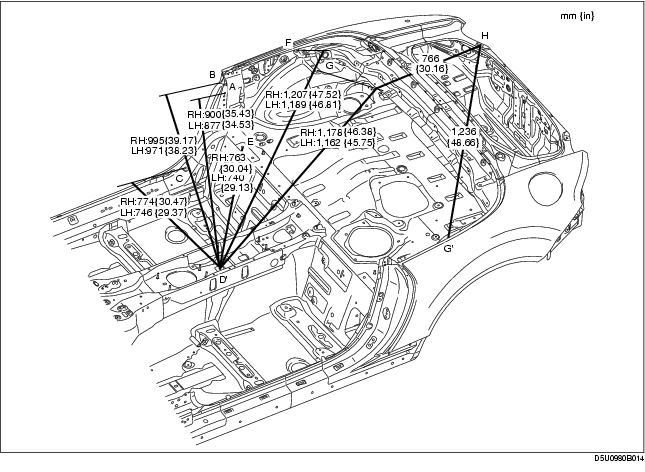

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Center pillar inner datum hole
|
ø14 {0.55}
|
|
B
|
Weather strip datum hole
|
ø5.2 {0.20}
|
|
C
|
Side sill inner rear datum hole
|
ø7 {0.28}
|
|
D'
|
Console installation hole
|
ø3.8 {0.15}
|
|
E
|
Center floor pan datum hole
|
ø12 {0.47}
|
|
F
|
Side brace datum hole
|
ø7 {0.28}
|
|
G
|
Wheel house inner datum hole
|
ø10 {0.39}
|
|
H
|
Rear rein rail datum slot
|
ø12 x 7.2 {0.47x0.28}
|
