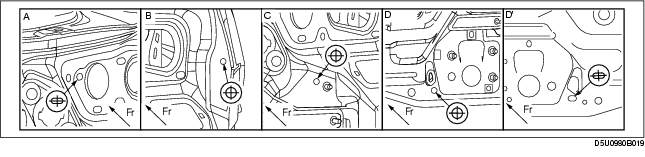

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Corner plate standard slot
|
ø8 x 12
|
|
{0.31 x 0.47}
|
|
B
|
Rear fender standard hole
|
ø8 {0.31}
|
|
C
|
Corner plate standard hole
|
ø7 {0.28}
|
|
D
|
Rear end panel datum hole
|
ø12 {0.47}
|
|
D'
|
Rear end panel datum slot
|
ø12 x 6
|
|
{0.47 x 0.24}
|
