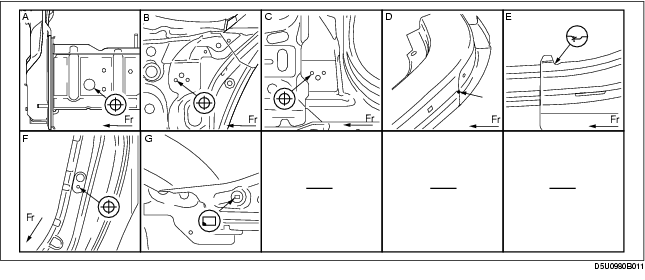

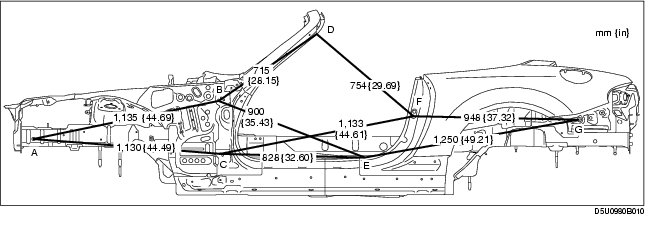

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Front side frame datum hole
|
ø20 {0.79}
|
|
B
|
Door hinge installation hole
|
ø12 {0.47}
|
|
C
|
Door hinge installation hole
|
ø12 {0.47}
|
|
D
|
Front header notch
|
-
|
|
E
|
Rear pillar notch
|
-
|
|
F
|
Door switch installation hole
|
ø7.2 {0.28}
|
|
G
|
Rear fender panel standard square hole
|
8 x 10
|
|
{0.31 x 0.39}
|
