WHEEL HOUSE (INNER) INSTALLATION [EUROPEAN (L.H.D.) SPECS.]


D5E098070440B14

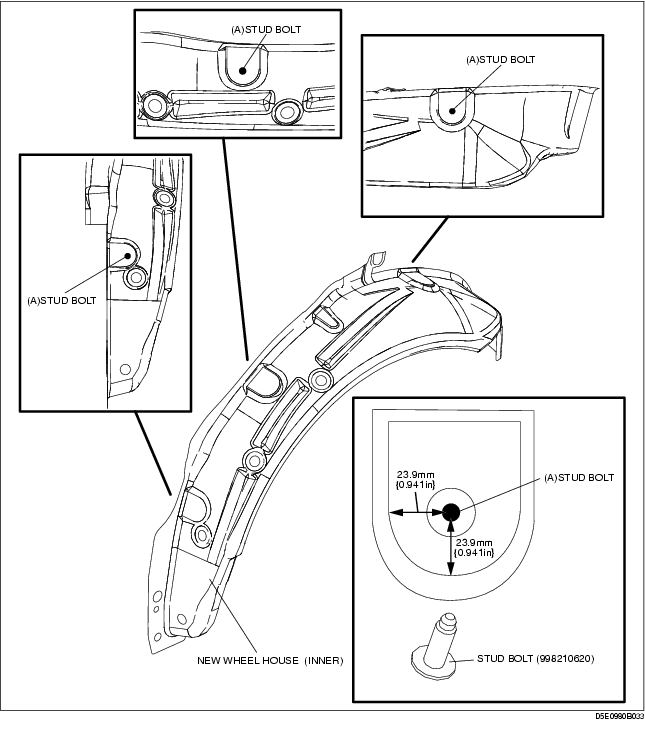

1. To prepare for installation, weld the stud bolts (998210620) to area (A) of a new wheel house (inner).

Note
• Weld the stud bolts for the mudguard installation.

2. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3. Drill holes for plug welds before installing new parts.

4. Before installing new parts, apply spot weld sealer to the wheel arch line.

5. After temporarily installing new parts, make sure the related parts fit properly.
