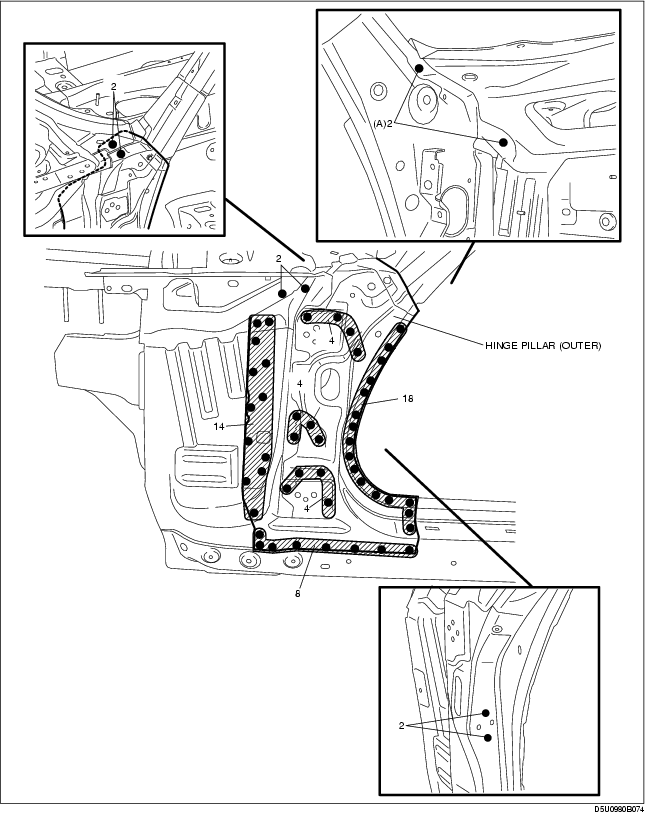

HINGE PILLAR (OUTER) REMOVAL


D5E098074090B03

1. Drill the 2 locations indicated by (A) from the interior.

2. Remove the hinge pillar (outer).

3. Remove the spot weld sealer using a disc grinder.

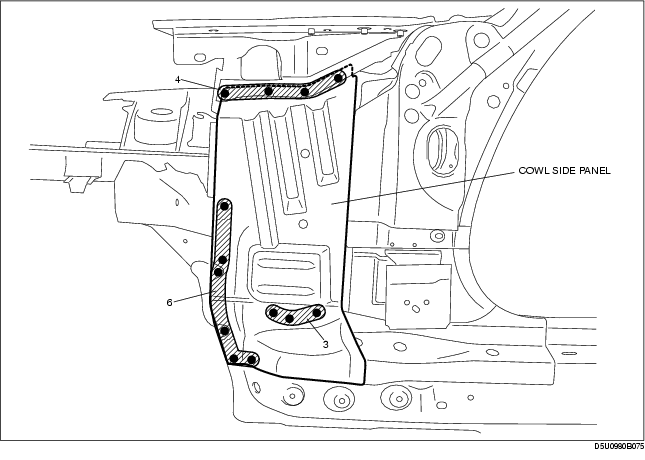

4. Remove the cowl side panel.

5. Remove the spot weld sealer using a disc grinder.

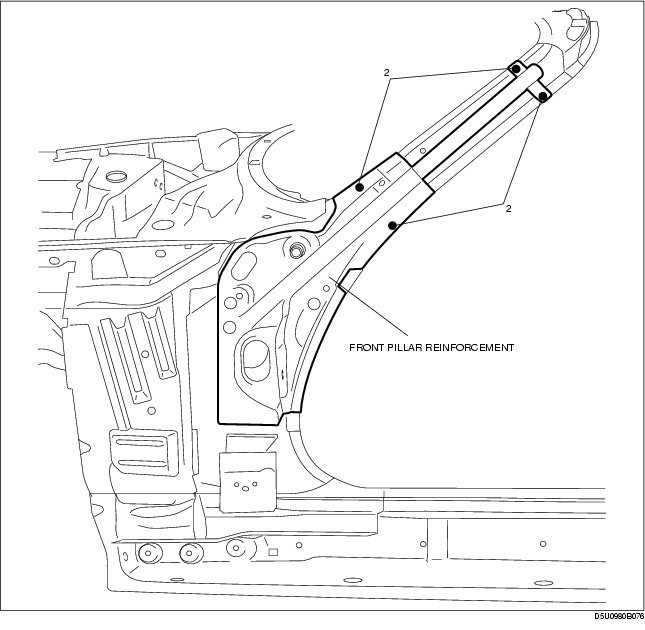

6. Remove the front pillar reinforcement.

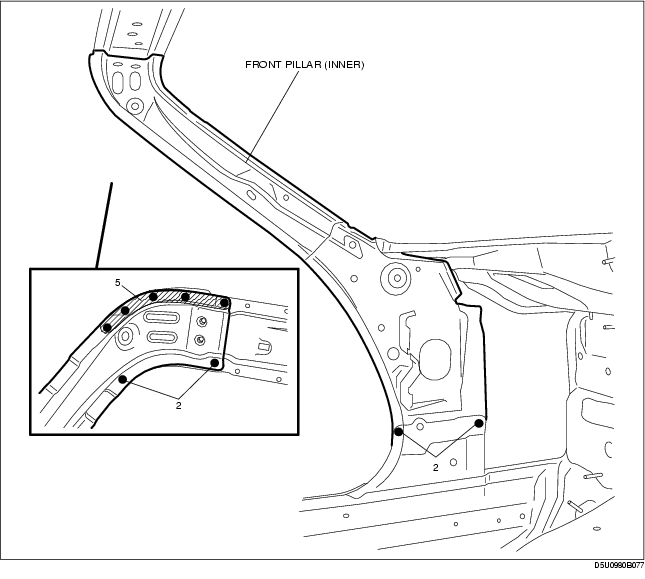

7. Remove the front pillar (inner).
