VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITION

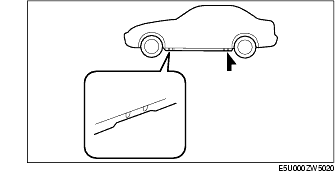

Vehicle Lift Positions

Front and rear

Warning

• Lifting a vehicle that is not stabilized is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of the support at the end of the arm of the lift.

Note

• The arrow at the rear of the vehicle indicates that it is the same as the illustration for the front of the vehicle.

• Both sides of the vehicle, on side sills

Safety Stand Positions

Front and rear

Note

• The arrow at the rear of the vehicle indicates that it is the same as the illustration for the front of the vehicle.

• Both sides of the vehicle, on side sills
