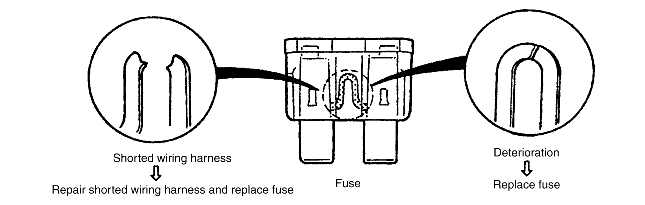

Damaged fuse
|
Related wiring harness
|
|
MAIN
|
MAIN fuse
• ROOM fuse
• IG KEY 2 fuse
• ST fuse
• FAN fuse*1
• Generator
|
|
ROOM
|
ROOM fuse
• DLC-2
• PCM
|
|
FUEL PUMP
|
FUEL PUMP fuse
• Fuel pump relay
-
- Fuel pump unit
|
|
IG KEY 1
|
IG KEY 1 fuse
• Ignition switch
-
- ENGINE fuse
-
• Ignition relay
|
|
IG KEY 2
|
IG KEY 2 fuse
• Ignition switch
-
- Starter relay
|
|
ETV
|
ETV fuse
• Main relay
-
- PCM
• Drive-by-wire-relay
-
- PCM
|
|
EGI COMP 1
|
EGI COMP 1 fuse
• Purge solenoid valve
• EGR valve
• Variable intake air solenoid valve
• Variable tumble solenoid valve (if equipped)
• Oil control valve (if equipped)
|
|
EGI COMP 2
|
EGI COMP 2 fuse
• Drive-by-wire-relay
• PCM
• Mass air flow sensor
|
|
EGI INJ
|
EGI INJ fuse
• Fuel injector No.1
• Fuel injector No.2
• Fuel injector No.3
• Fuel injector No.4
|
|
ENGINE*2
|
ENGINE fuse
• Fuel pump relay
• PCM
|
|
ENGINE*2
|
ENGINE fuse
• Ignition relay
|
|
FAN*1
|
FAN fuse
• Cooling fan relay No.1
-
- Cooling fan motor
• Cooling fan relay No.2
-
- Cooling fan motor
|
|
FAN*1
|
FAN fuse
• Cooling fan relay No.1
-
- PCM
• Cooling fan relay No.2
-
- PCM
• Cooling fan relay No.3
-
- PCM
|
|
ST
|
ST fuse
• Starter relay
-
- Starter
|
