CYLINDER HEAD COVER CONSTRUCTION [L8, LF]


id0110a9100200

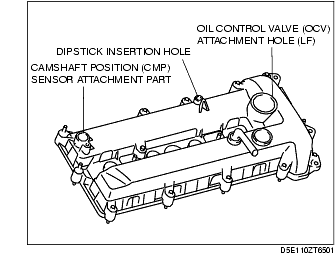

• The cylinder head cover is made of integrated plastic, which is lightweight and sound absorbent.

• The oil filler cap is a bayonet type.

• The boss for installing the camshaft position (CMP) sensor is provided at the rear of the cylinder head cover.

• LF engine models has a hole for installing the oil control valve (OCV).

• A dipstick insertion hole has been equipped to the cylinder head cover.
