• A V-ribbed drive belt is employed.

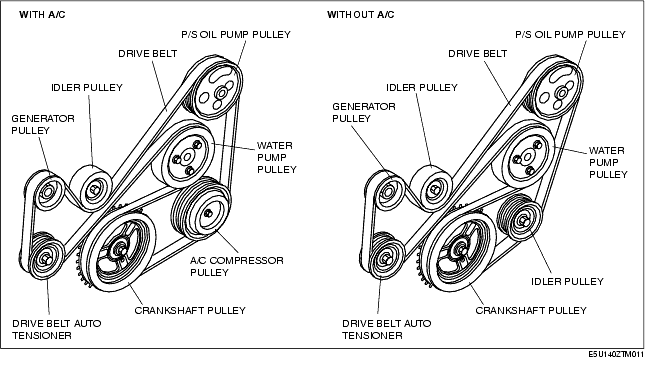

• The single, serpentine type drive belt drives auxiliary parts, resulting in a shortened overall engine length and improved serviceability.
• A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain the optimal drive belt tension.
Drive Belt Specification.
|
item
|
Specification
|
|
|---|---|---|
|
L8, LF
|
||
|
Belt length
|
mm {in}
|
About 2,243 {88.31}
(About 2,163 {85.16})*
|
|
Belt width
|
mm {in}
|
About 20.5 {0.81}
|
