DRIVE BELT INSPECTION [L8, LF]

Note

• Drive belt deflection/tension inspection is not necessary because of the use of the auto tensioner.

1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

Note

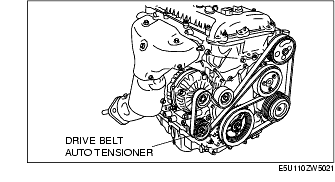

• Use a mirror to see the position of the drive belt auto tensioner indicator mark.

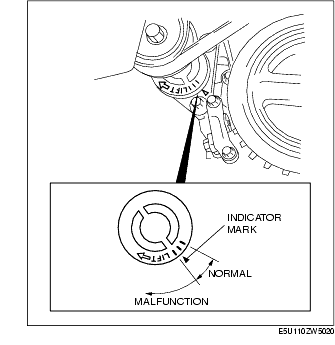

2. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

• If it exceeds the limit, replace the drive belt. (See DRIVE BELT REPLACEMENT [L8, LF].)

AT

MT

3. Install the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
