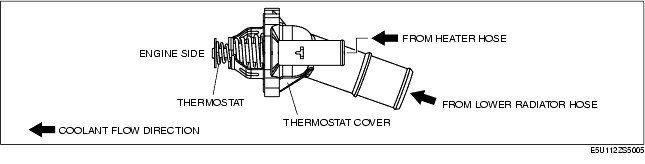

• A wax-type thermostat with a jiggle-valve has been adopted.
• When the engine coolant temperature reaches 80-84 °C {176-183 °F}, the valve starts opening to allow engine coolant to flow from the radiator stabilizing the engine coolant temperature. When the engine coolant temperature decreases to approx. 75 °C {167 °F}, the valve closes to stop the engine coolant flow from the radiator.
