ENGINE COOLANT PROTECTION INSPECTION [L8, LF]

1. Measure the coolant temperature and specific gravity using a thermometer and a hydrometer.

Caution

• Use engine coolant at a concentration that meets the environmental conditions in which the vehicle is driven, otherwise engine damage could occur.

• The engine has aluminum parts and must be protected by an ethylene-glycol-based coolant to prevent corrosion and freezing.

• Do not use coolants containing Alcohol, Methanol, Borate or Silicate. These coolants could damage the cooling system.

• Use only soft (demineralized) water in the coolant mixture. Water that contains minerals will cut down on the coolant's effectiveness.

• Engine coolant damages paint. If engine coolant does get on a painted surface, rinse it off quickly.

Note

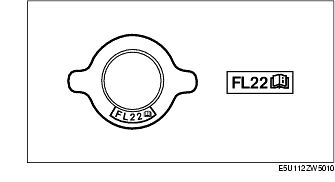

• If the "FL22" mark is shown on or near the cooling system cap, use FL22 type engine coolant.

• FL22 type engine coolant is shipped as a diluted solution (55% coolant, 45% water). Use the solution as is when replacing coolant.

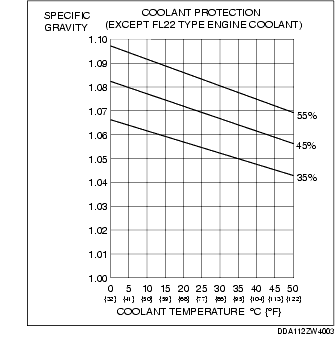

2. Determine the coolant protection level by referring to the graph shown.

• If the coolant protection level is not correct, add water or coolant.
