FAN MOTOR INSPECTION [L8, LF]


id0112b4800900

Part inspection

1. Verify that the battery is fully charged.

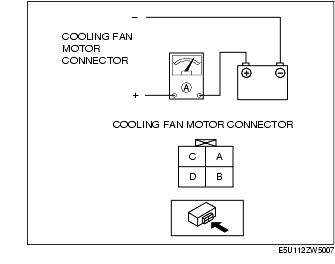

2. Install a tester and battery to the cooling fan motor connector (4 terminals) as shown in the figure.

Fan motor rotation speed

Connection terminal

Positive

Negative

High
A and C
B and D
Middle
C
B and D
Low
C
B

3. Verify that fan motor operates smoothly at the standard current.

• If there is any malfunction, replace the applicable part.
Cooling fan motor current
High: 9.0-12.0 A
Middle: 6.4-9.4 A
Low: 4.8-7.8 A
