VARIABLE TUMBLE SOLENOID VALVE REMOVAL/INSTALLATION [L8, LF]


id0113a3810100

1. Remove the plug plate.(See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF].)

2. Remove the battery cover.

3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

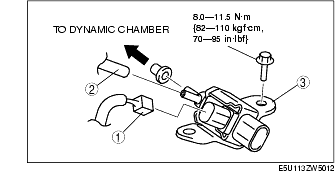

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

1
Connector
2
Vacuum hose
3
Variable tumble solenoid valve
