BATTERY RECHARGING [L8, LF]

Warning

• Keep all flames away from the battery, otherwise evaporated gas from the battery fluid may catch fire, and cause serious injury.

• Remove the battery filler caps when recharging to prevent battery deformation or damage.

Caution

• Do not quick charge for more than 30 min. It will damage the battery.

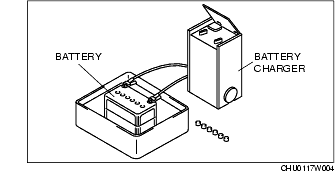

1. Remove the battery and then place it in a pan of water.

2. Connect a battery charger to the battery and adjust the charging current as follows.

Battery slow charge current

46B24L (36): 3.5-4.5 A

Battery quick charge current [30 min.]

46B24L (36): 25 A

3. After the battery is recharged, verify that the voltage is within the specification and remains at the same value for 1 h or more after the recharging has been completed.

• If not within the specification, replace the battery.

Standard voltage

12.4 V or more
