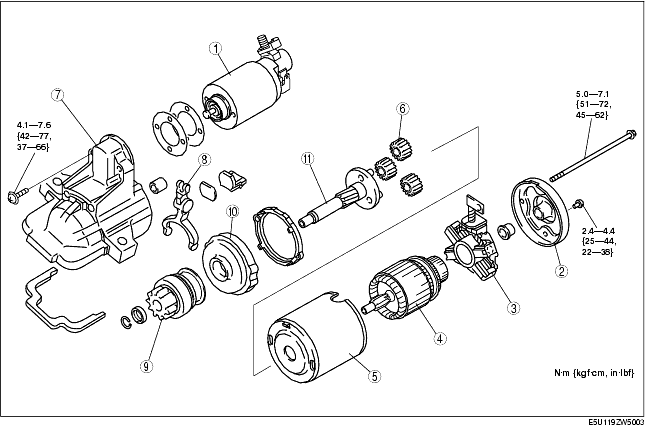

STARTER DISASSEMBLY/ASSEMBLY [L8, LF]


id0119a4104500

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

1
Magnetic switch
2
Rear housing
3
Brush and brush holder
4
Armature
5
Yoke
6
Planetary gear
7
Front cover
8
Lever
9
Drive pinion
10
Internal gear
11
Gear shaft
