PCM CONFIGURATION [L8, LF]

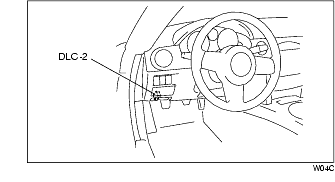

1. Connect the M-MDS to DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

• When using the IDS (laptop PC)

1. Select the "Module Programming".

• When using the PDS (Pocket PC)

1. Select "Programming".

2. Select "Module Programming".

3. Then, select the "Programmable Module Installation", "PCM" from the screen menu.

4. Retrieve DTCs by the M-MDS, then verify that there is no DTC present.

• If a DTC is present, perform the applicable DTC inspection.
