HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [L8, LF]

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

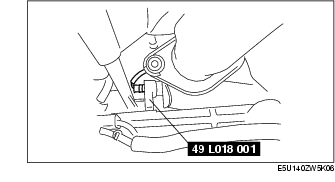

3. Install the SST to the HO2S.

4. Remove the HO2S.

5. Install in the reverse order of removal.

HO2S tightening torque

29-49 N·m {3.0-4.9 kgf·m, 22-35 ft·lbf}
