MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [L8, LF]


id0140i7805500

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Disconnect MAF/IAT sensor connector.

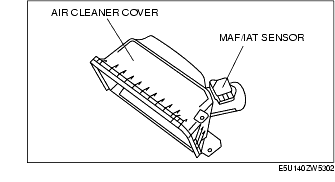

4. Remove the MAF/IAT sensor.

5. Install in the reverse order of removal.

MAF/IAT sensor tightening torque
0.55-0.82 N·m {5.7-8.3 kgf·cm, 4.9-7.2 in·lbf}
