AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [L8, LF]

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

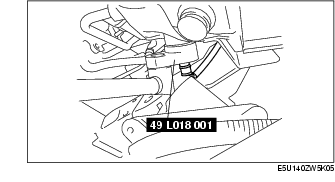

3. Install the SST to the A/F sensor.

4. Remove the A/F sensor.

5. Install in the reverse order of removal.

A/F sensor tightening torque

29-49 N·m {3.0-4.9 kgf·m, 22-35 ft·lbf}
