REAR WHEEL ALIGNMENT
id021100800300
-
Rear wheel alignment [16-inch wheel]
|
Item
|
Specification
|
|
Total toe-in
|
Tire [Tolerance ±4 mm {0.15 in}]
|
(mm {in})
|
3 {0.12}
|
|
Rim inner
|
(mm {in})
|
1.8±2.4 {0.071±0.094}
|
|
|
degree
|
0°17'±22'
|
|
Camber
[Tolerance ±1°]
|
Vehicle height: From the end of the rear fender to the center of the wheel (mm {in})
|
354-363 {14.0-14.2}
|
-1°33'
|
|
364-373 {14.4-14.6}
|
-1°18'
|
|
374-383 {14.8-15.0}
|
-1°04'
|
|
384-393 {15.2-15.4}
|
-0°54'
|
|
394-403 {15.6-15.8}
|
-0°45'
|
-
Rear wheel alignment [17-inch wheel]
|
Item
|
Specification
|
|
Total toe-in
|
Tire [Tolerance ±4 mm {0.15 in}]
|
(mm {in})
|
3 {0.12}
|
|
Rim inner
|
(mm {in})
|
2.2±2.8 {0.083±0.110}
|
|
|
degree
|
0°17'±22'
|
|
Camber
[Tolerance ±1°]
|
Vehicle height: From the end of the rear fender to the center of the wheel (mm {in})
|
349-358 {13.8-14.0}
|
-1°42'
|
|
359-368 {14.2-14.4}
|
-1°25'
|
|
369-378 {14.6-14.8}
|
-1°11'
|
|
379-388 {15.0-15.2}
|
-0°59'
|
|
389-398 {15.4-15.6}
|
-0°49'
|
-
Note
-
• Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
-
• Difference between the left and right camber angle is within 1°.
Camber Adjustment

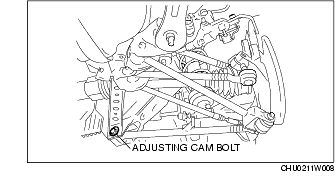

1. Loosen the fixing nut of the adjusting cam bolt (rear lateral link (lower)).
2. Rotate the adjusting cam bolt in either direction to adjust the camber.
-
Vehicle equipped with 16-inch wheel
|
Vehicle height*
|
Camber
|
|
354-363 {14.0-14.2}
|
-1°33'
|
|
364-373 {14.4-14.6}
|
-1°18'
|
|
374-383 {14.8-15.0}
|
-1°04'
|
|
384-393 {15.2-15.4}
|
-0°54'
|
|
394-403 {15.6-15.8}
|
-0°45'
|
-
Vehicle equipped with 17-inch wheel
|
Vehicle height*
|
Camber
|
|
349-358 {13.8-14.0}
|
-1°42'
|
|
359-368 {14.2-14.4}
|
-1°25'
|
|
369-378 {14.6-14.8}
|
-1°11'
|
|
379-388 {15.0-15.2}
|
-0°59'
|
|
389-398 {15.4-15.6}
|
-0°49'
|
*: From the end of the rear fender to the center of the wheel (mm {in})
|
|
Left wheel
|
Right wheel
|
|
Positive direction
|
Counterclockwise
|
Clockwise
|
|
Negative direction
|
Clockwise
|
Counterclockwise
|
-
Note
-

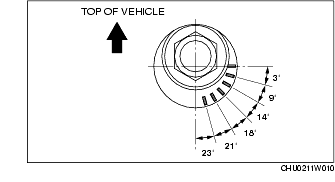

• Refer to the figure for the adjusting angle per one graduation.
3. Tighten the nut.
-
Tightening torque
-
117.7-137.3 N·m {12.1-14.0 kgf·m, 86.9-101.2 ft·lbf}
Total Toe-in Adjustment
1. Loosen the installation nut of the adjusting cam bolt.

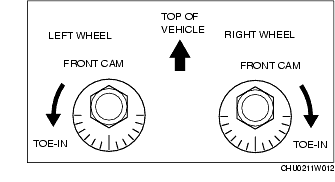

2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.
-
Standard
-
3±4 mm {0.08±0.15 in} (0°17'±20')
-
Note
-

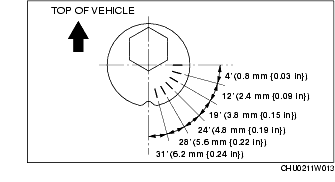

• Refer to the following figure for the adjusting angle per one graduation of the toe-in gauge.
3. Tighten the nut.
-
Tightening torque
-
70-95 N·m {7.2-9.6 kgf·m, 52-70 ft·lbf}
