PUNCTURE REPAIR KIT OUTLINE

• An emergency puncture repair kit has been provided for the vehicle not equipped with the run-flat tire instead of a temporary spare tire. This kit enables temporary repair of a puncture without tire removal.

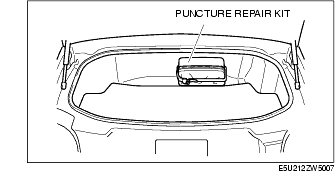

• The emergency puncture repair kit is located in trunk compartment and includes the following:

- Repair agent

- Repair agent filler hose

- Air compressor

- Tire valve core

- Tire valve core tool

- Instruction manual

- Speed limit label

- Filled tire indication label

• The accessory socket (12 V DC) is used as an input power source for the air compressor and the compressor plug includes a 10 A fuse.

Note

• The expiration date of the repair agent is printed on the repair agent bottle. Do not use the repair agent if it has passed the expiration date.

• Dispose of repair agent according to local waste disposal law.

• The repair agent consists of the following ingredients:

- Deproteinized natural rubber latex

- Emulsified adhesive resin

- Propylene glycol
