DOUBLE WISHBONE FRONT SUSPENSION CONSTRUCTION

Improved roadholding

• The heightened damper lever ratio has improved the efficiency of shock absorber operation.

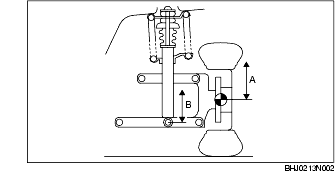

- Damper lever ratio:

shock absorber stroke (B)/wheel vertical stroke (A)

- The heightened damper lever ratio has made it possible to provide a damping force even during minute strokes. As a result, excellent roadholding is exhibited in a variety of driving conditions.

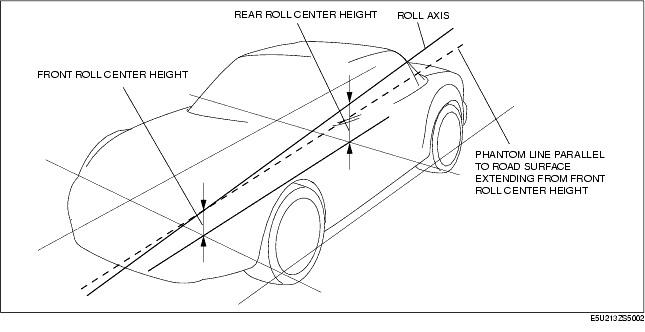

Optimized roll axis position

• The height of the front roll center is set lower than the rear.

• Change of roll center height in response to a change in wheel stroke has been suppressed in order to improve roll linearity and convergence.
