DRIVELINE/AXLE SPECIFICATIONS


Item				Specification
Transmission type				MT	AT
Front axle
Bearing type				Angular ball bearing
Rear axle
Bearing type				Angular ball bearing
Rear drive shaft
Joint type		Wheel side		Bell joint
Joint type		Differential side		Tripod joint
Shaft diameter			(mm {in})	36.0 {1.42} (Maximum diameter) 26.6 {1.05} (Minimum diameter)
Rear differential
Reduction gear type				Hypoid gear
Differential gear type				Straight bevel gear
Ring gear size			(inch)	7.35
Reduction ratio				4.100
Number of gear teeth		Drive pinion		10
Number of gear teeth		Ring gear		41
Differential oil	Type	Grade		API service GL-5
	Type	Viscosity		SAE 90
	Capacity (approx. quantity)		(L {US qt, Imp qt})	0.6-0.8 {0.63-0.85, 0.53-0.70}

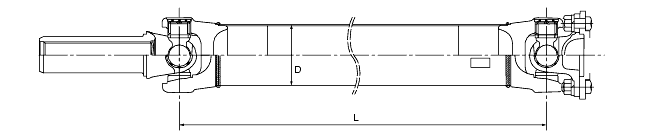

Propeller shaft
Length		(mm {in})	L	736 {29.0}	780 {30.7}
Diameter		(mm {in})	D	65 {2.6}
