FRONT WHEEL HUB BOLT REPLACEMENT


id031100800200

1. Remove the brake calliper component and disc plate.

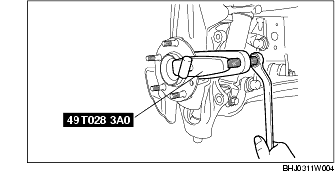

2. Remove the wheel hub bolt using the SST as shown in the figure.

3. Place a new wheel hub bolt in the wheel hub.

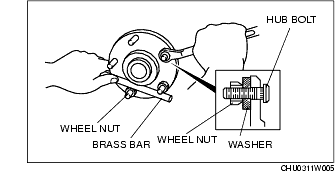

4. Install the wheel hub bolt by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.
