DIFFERENTIAL OIL REPLACEMENT

1. Park the vehicle on level ground.

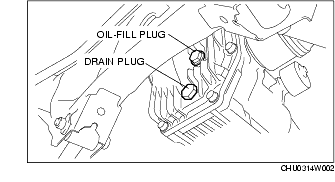

2. Remove the oil-fill plug.

3. Remove the drain plug and drain the oil.

4. Install the drain plug with a new washer and tighten.

Tightening torque

39.2-53.9 N·m

{4.00-5.49 kgf·m, 29.0-39.7 ft·lbf}

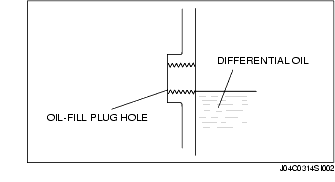

5. Add the specified oil from the oil-fill plug hole until the oil level reaches the lower end of the plug hole.

Differential oil

Grade: API service GL-5

Viscosity: SAE 90

Capacity (approx. quantity): 0.6-0.8 L {0.63- 0.85 US qt, 0.53-0.70 Imp qt}

6. Install the oil-fill plug with a new washer and tighten.

Tightening torque

39.2-53.9 N·m

{4.00-5.49 kgf·m, 29.0-39.7 ft·lbf}
