PROPELLER SHAFT INSPECTION

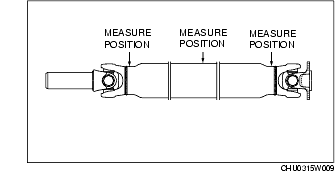

1. Use a dial gauge to measure the runout of the propeller shaft at each position.

• If it exceeds the maximum specification, replace the propeller shaft.

Maximum runout

0.6 mm {0.024 in}

2. Inspect the play and rotation of the joint by turning the universal joint in the direction shown by the arrow.

Initial torque (Reference value)

0.29-0.98 N·m

{3.0-10 kgf·cm, 2.7-8.6 in·lbf}

• If there is excessive play or initial torque, replace the propeller shaft.
