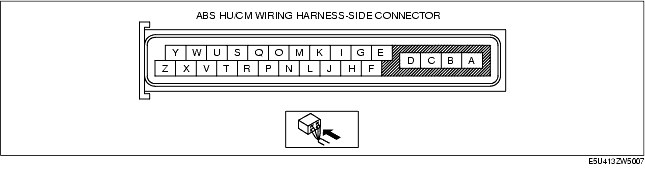

Terminal
|
Signal name
|
Connected to
|
Measured item
|
Measured terminal (measured condition)
|
Standard
|
Inspection item(s)
|
|
A
|
Ground
(ABS motor)
|
Ground point
|
Continuity
|
A-ground point
|
Continuity detected
|
• Wiring harness (A-ground point)
|
|
B
|
Power supply
(ABS motor operation)
|
Battery
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness (B-battery)
|
|
C
|
Power supply
(solenoid)
|
Battery
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness (C-battery)
|
|
D
|
Ground
(ABS system)
|
Ground point
|
Continuity
|
D-ground point
|
Continuity detected
|
• Wiring harness (D-ground point)
|
|
E
|
LF wheel-speed sensor (ground)
|
LF ABS wheel-speed sensor
|
Continuity
|
E-LF ABS wheel-speed sensor connector terminal B
|
Continuity detected
|
• Wiring harness (E-LF ABS wheel-speed sensor connector terminal B)
|
|
F
|
LF wheel-speed sensor (single)
|
LF ABS wheel-speed sensor
|
Continuity
|
F-LF ABS wheel-speed sensor connector terminal A
|
Continuity detected
|
• Wiring harness (F-LF ABS wheel-speed sensor connector terminal A)
|
|
G
|
LR wheel-speed sensor (signal)
|
LR ABS wheel-speed sensor
|
Continuity
|
G-LR ABS wheel-speed sensor connector terminal A
|
Continuity detected
|
• Wiring harness (G-LR ABS wheel-speed sensor connector terminal A)
|
|
H
|
LR wheel-speed sensor (ground)
|
LR ABS wheel-speed sensor
|
Continuity
|
H-LR ABS wheel-speed sensor connector terminal B
|
Continuity detected
|
• Wiring harness (H-LR ABS wheel-speed sensor connector terminal B)
|
|
I
|
RR wheel-speed sensor (signal)
|
RR ABS wheel-speed sensor
|
Continuity
|
I-RR ABS wheel-speed sensor connector terminal A
|
Continuity detected
|
• Wiring harness (I-RR ABS wheel-speed sensor connector terminal A)
|
|
J
|
Power supply
(system)
|
Ignition switch
|
Voltage
|
Ignition switch at ON
|
B+
|
• Wiring harness (J-ignition switch)
|
|
Ignition switch is off.
|
1 V or less
|
-
|
|
K
|
-
|
-
|
-
|
-
|
-
|
-
|
|
L
|
RR wheel-speed sensor (ground)
|
RR ABS wheel-speed sensor
|
Continuity
|
L-RR ABS wheel-speed sensor connector terminal B
|
Continuity detected
|
• Wiring harness (L-RR ABS wheel-speed sensor connector terminal B)
|
|
M
|
RF wheel-speed sensor (signal)
|
RF ABS wheel-speed sensor
|
Continuity
|
M-RF ABS wheel-speed sensor connector terminal A
|
Continuity detected
|
• Wiring harness (M-RF ABS wheel-speed sensor connector terminal A)
|
|
N
|
Brake switch
|
Brake switch
|
Voltage
|
N-brake switch
(Brake pedal depressed)
|
B+
|
• Wiring harness (N-brake switch)
• Brake switch
|
|
Y-brake switch
(Brake pedal not depressed)
|
1 V or less
|
|
O
|
RF wheel-speed sensor (ground)
|
RF ABS wheel-speed sensor
|
Continuity
|
O-RF ABS wheel-speed sensor connector terminal B
|
Continuity detected
|
• Wiring harness (O-RF ABS wheel-speed sensor connector terminal B)
|
|
P
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Q
|
-
|
-
|
-
|
-
|
-
|
-
|
|
R
|
-
|
-
|
-
|
-
|
-
|
-
|
|
S
|
-
|
-
|
-
|
-
|
-
|
-
|
|
T
|
-
|
-
|
-
|
-
|
-
|
-
|
|
U
|
-
|
-
|
-
|
-
|
-
|
-
|
|
V
|
-
|
-
|
-
|
-
|
-
|
-
|
|
W
|
-
|
-
|
-
|
-
|
-
|
-
|
|
X
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Y
|
CAN_L
|
DLC-2 (CAN_L)
|
Continuity
|
Y-DLC-2 terminal CAN_L
|
Continuity detected
|
• Wiring harness (Y-DLC-2 terminal CAN_L)
|
|
Z
|
CAN_H
|
DLC-2 (CAN_H)
|
Continuity
|
Z-DLC-2 terminal CAN_H
|
Continuity detected
|
• Wiring harness (Z-DLC-2 terminal CAN_H)
|
