BRAKE FLUID PRESSURE SENSOR INSPECTION

1. Turn the ignition switch off.

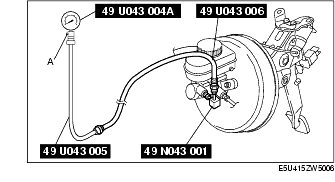

2. Install the SSTs to the master cylinder.

Note

• Install the SST (49 N043 001) to the master cylinder using a commercially available flare nut wrench.

- Flare nut across flat: 12 mm {0.47 in}

3. Bleed the air from the SSTs and the brake line. (Bleed air from the SSTs through air bleeding valve A.)

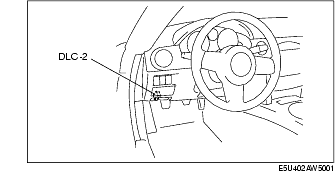

4. Connect the M-MDS to the DLC-2.

5. Select the MCYLI P PID.

6. Start the engine.

7. Depress the brake pedal, and confirm that the fluid pressure value of the SST (Gauge) and the value shown on the M-MDS are equal.

• If the fluid pressures are different, replace the DSC HU/CM.
