DSC OFF SWITCH INSPECTION

id041500802000

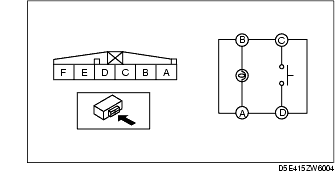

L.H.D.

1. Remove the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION.)

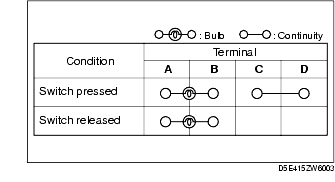

2. Verify that the continuity is as indicated in the table.

• If not as indicated in the table, replace the DSC OFF switch.

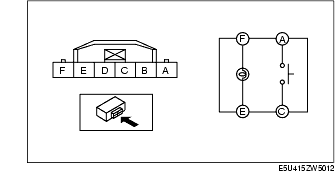

R.H.D.

1. Remove the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION.)

2. Verify that the continuity is as indicated in the table.

• If not as indicated in the table, replace the DSC OFF switch.
