NEUTRAL SWITCH REMOVAL/INSTALLATION [P66M-D]


id051100247111

1. Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)

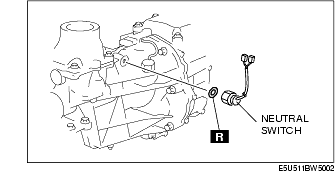

2. Remove the neutral switch.

3. Install the neutral switch and a new packing to the transmission case.

Tightening torque
23.6-35.3 N·m
{2.5-3.5 kgf·m, 18-26 ft·lbf}

4. Install the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)
