TRANSMISSION OIL INSPECTION [M15M-D]

id051100247810

1. Position the vehicle on level ground.

2. Remove the Insulator (except L8).

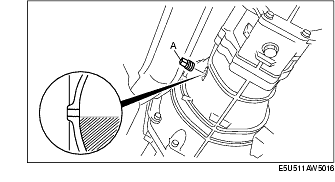

3. Remove the check plug A.

4. Verify that the oil is at the brim of the check plug hole as shown.

• If it is low, add the specified oil from the check plug hole.

Specified oil grade

API Service GL-4 or GL-5

Specified oil viscosity

All season: SAE 75W-90

Above 10°C {50°F}: SAE 80W-90

5. Install the new check plug A.

Tightening torque

A: 25-39 N·m {2.6-3.9 kgf·m, 19-28 ft·lbf}

6. Install the Insulator (except L8).
