TRANSMISSION OIL INSPECTION [P66M-D]

1. Position the vehicle on level ground.

2. Remove the Insulator.

(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)

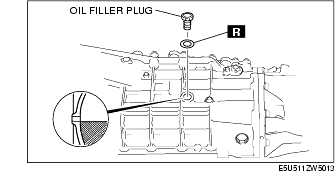

3. Remove oil filler plug.

4. Verify that the oil is near the brim of the plug port.

• If the oil is not near the brim of the plug port, add the specified amount and type of oil.

Transmission case specified oil grade

API Service GL-4

Transmission case specified oil viscosity

SAE 75W-90

5. Install oil filler plug and a new washer.

Tightening torque

40-59 N·m {4.1-6.0 kgf·m, 30-43 ft·lbf}

6. Install the Insulator.

(See TRANSMISSION REMOVAL/INSTALLATION [P66M-D].)
