TRANSMISSION OIL REPLACEMENT [M15M-D]

id051100247910

1. Position the vehicle on level ground.

2. Remove the Insulator (except L8).

3. Remove the drain plug B with washer.

4. Drain the oil into a container.

5. Wipe the drain plug B clean and apply sealant to the drain plug B threads before installing.

6. Install the drain plug B with new washer.

Tightening torque

B: 39-59 N·m {4.0-5.9 kgf·m, 29-42 ft·lbf}

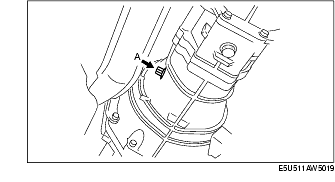

7. Remove the check plug A.

8. Add the specified oil from check plug A port until the level reaches the brim of check plug hole.

Specified oil grade

API Service GL-4 or GL-5

Specified oil viscosity

All season: SAE 75W-90

Above 10°C {50°F}: SAE 80W-90

Capacity (approx. quantity)

2.0 L {2.1 US qt, 1.8 lmp qt}

9. Install the new check plug A.

Tightening torque

A: 25-39 N·m {2.6-3.9 kgf·m, 19-28 ft·lbf}

10. Install the Insulator (except L8).
