• A triple cone synchronizer mechanism is used for the 1st, 2nd, 3rd and 4th gears.
• The triple cone synchronizer mechanism is a compact device capable of heavy duty meshing.
• The synchro mechanism reduces meshing time and improves operation.

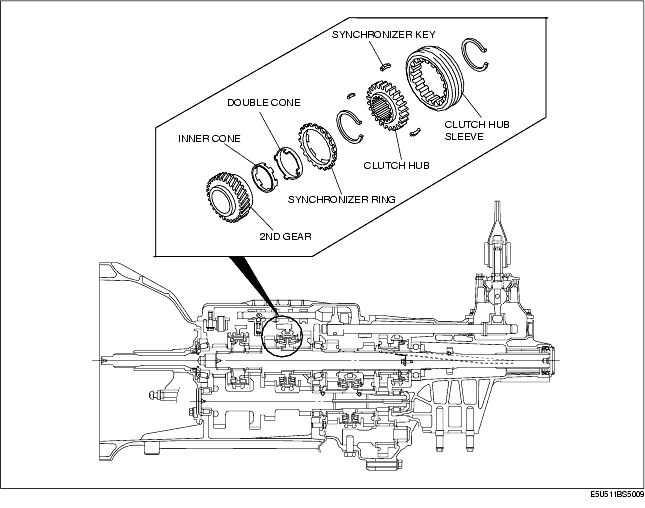

• The triple cone synchro mechanism includes a synchronizer ring, a double cone, and an inner cone.
