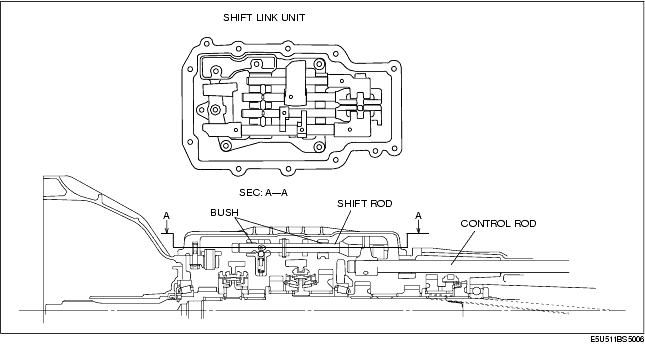

SHIFT MECHANISM [P66M-D]

Shift rod

STRUCTURE

• The shift lever stroke has been set shorter to provide optimal shift feel.

• To realize assured shift feel, the shift link mechanism has been integrated.

• Due to the use of metal bushings for the sliding parts of the shift rod, sliding resistance during shifting is greatly reduced, thus improving shift quality.
