TCM REMOVAL/INSTALLATION [SJ6A-EL]


id051311250800

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

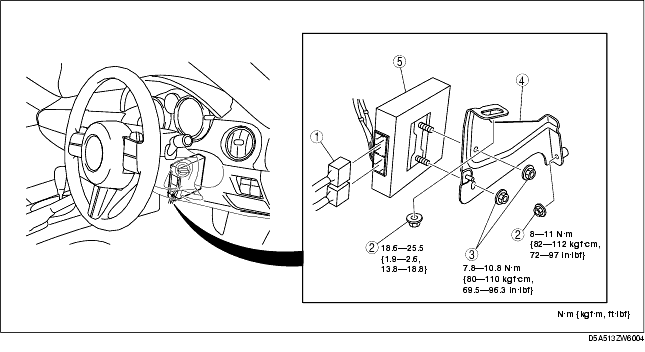

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

1
TCM connector
2
Nut
3
Nut
4
Bracket
5
TCM
