TURBINE SENSOR REMOVAL/INSTALLATION [SJ6A-EL]

Caution

• Water or foreign material entering the connector can cause poor connections or corrosion. Be sure that water or foreign material do not enter the connector when disconnecting it.

• Do not damage the turbine sensor.

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Disconnect the turbine sensor connector.

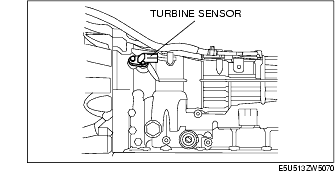

4. Remove the turbine sensor.

5. Install the turbine sensor.

Tightening torque

3.9-6.9 N·m {40-70 kgf·cm, 35-60 in·lbf}

6. Connect the turbine sensor connector.

7. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

8. Install the battery cover.
