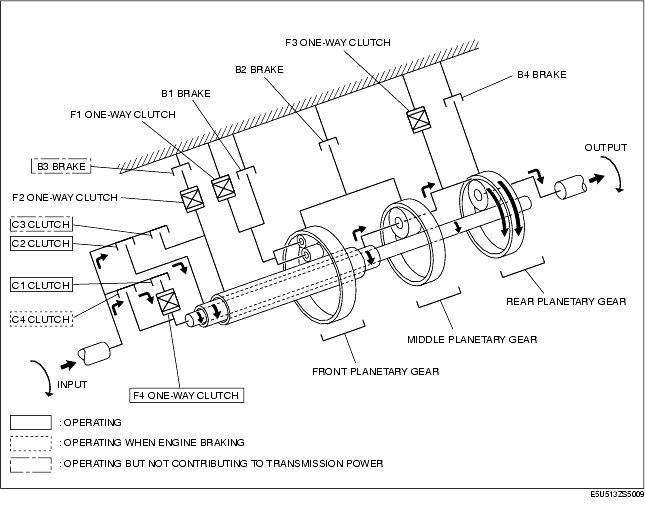

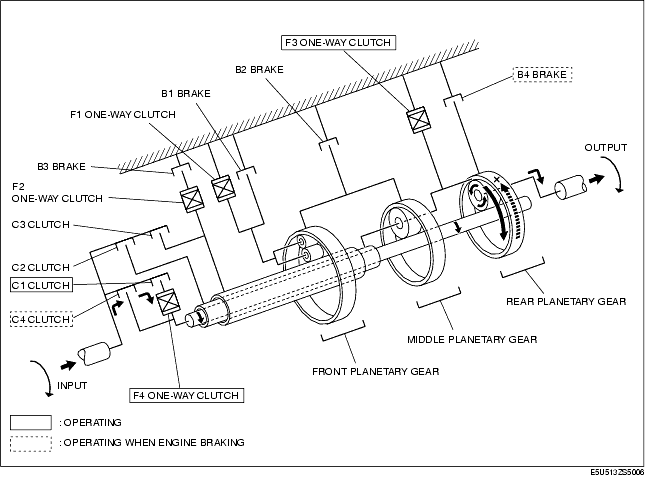

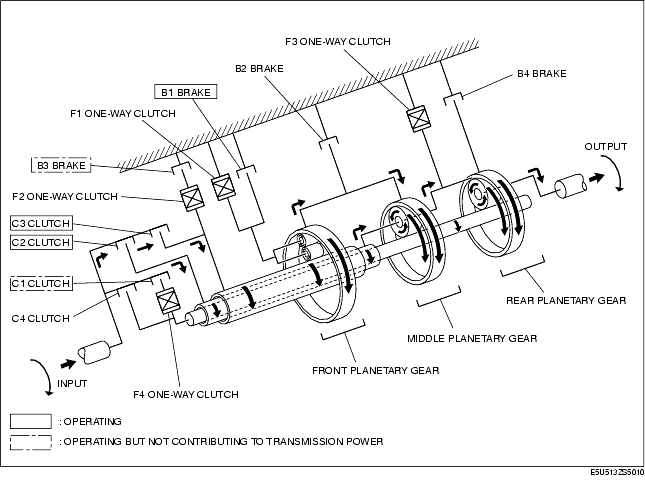

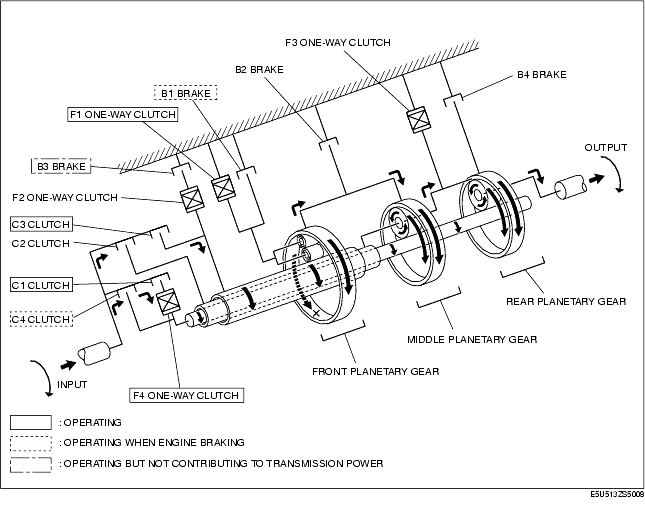

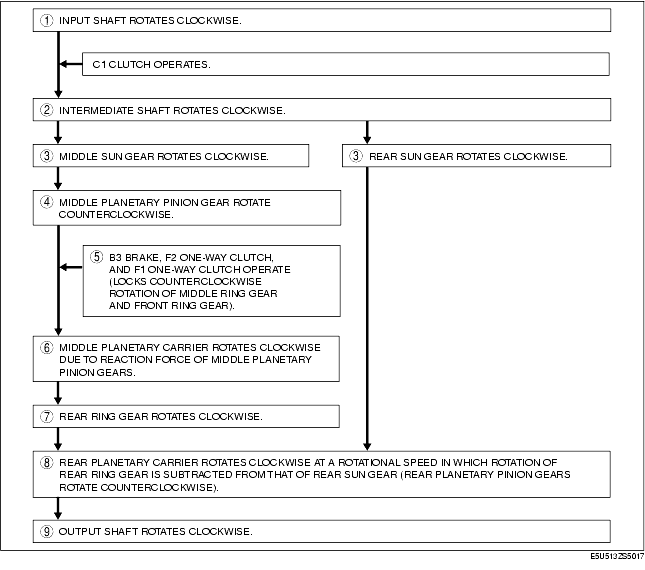

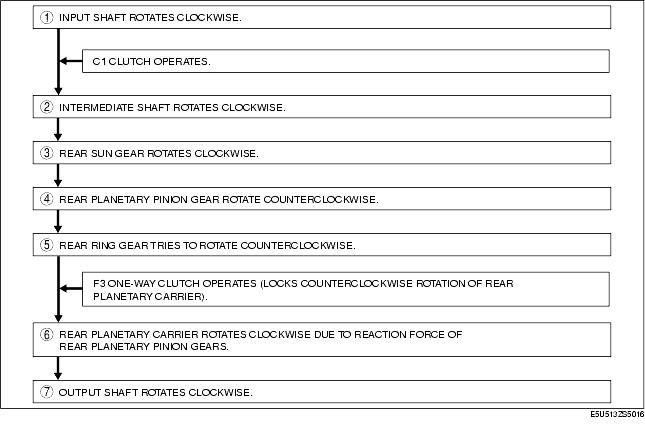

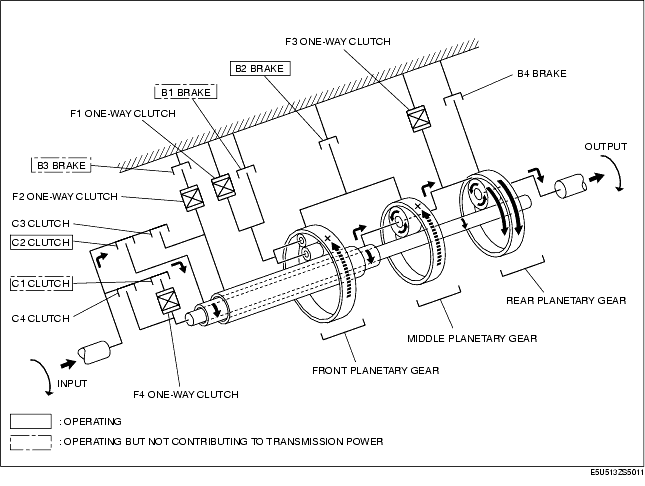

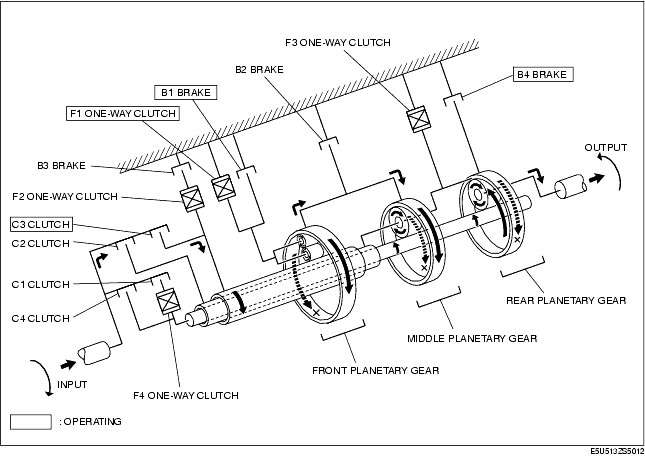

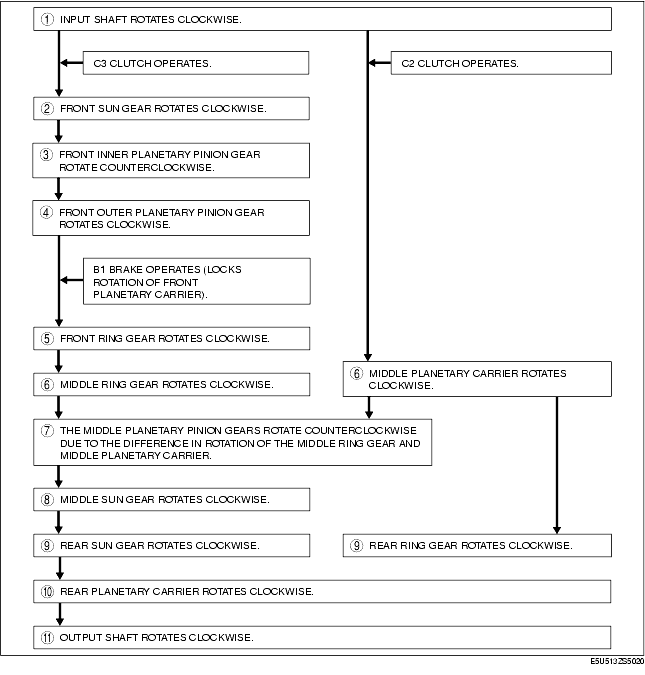

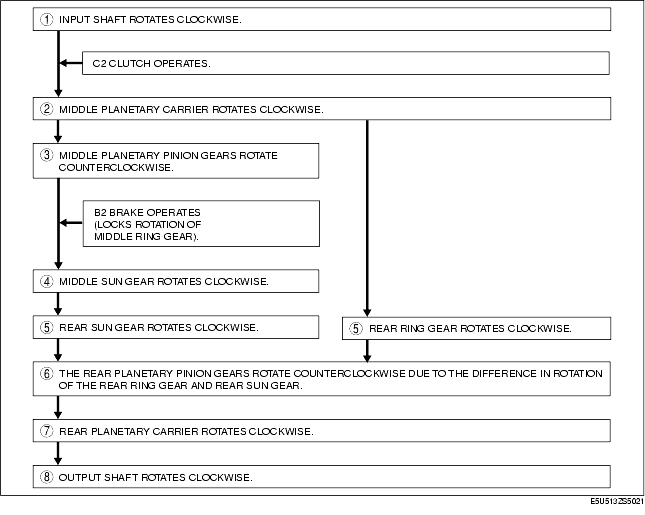

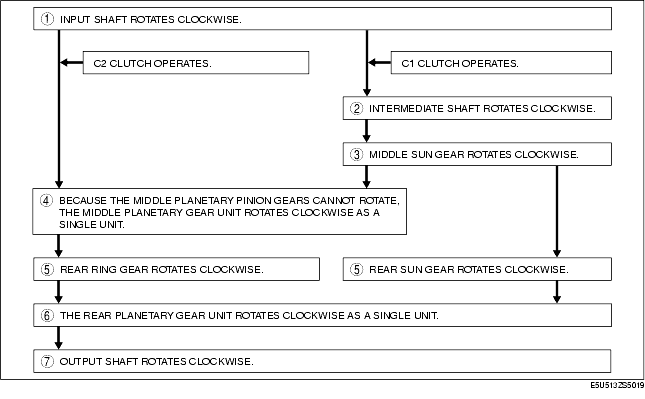

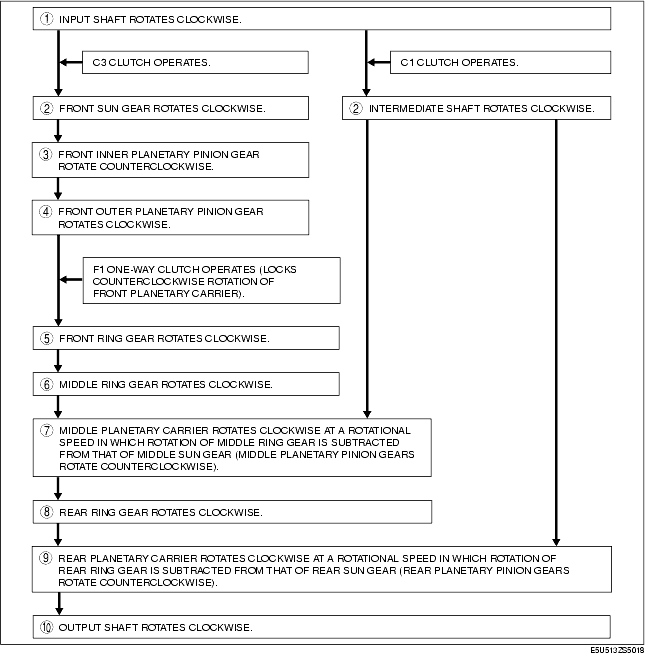

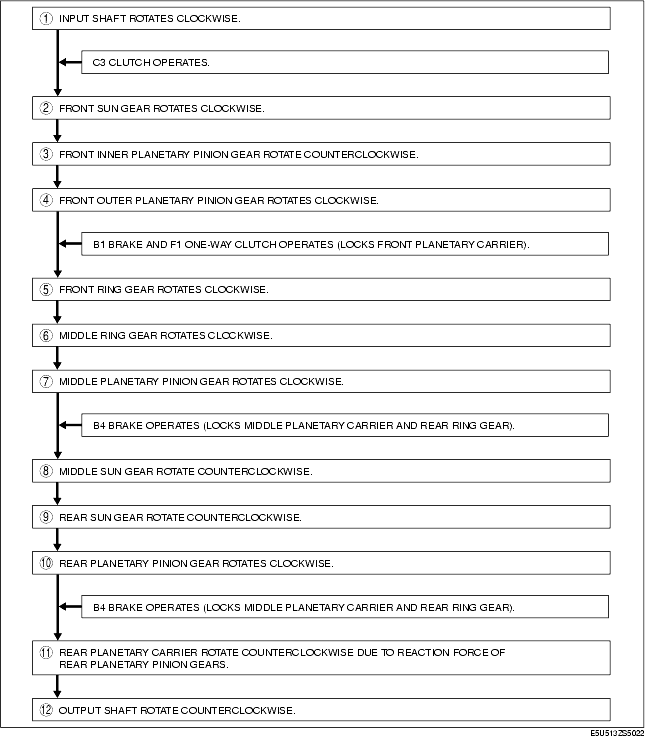

Clutch / Brake
|
Operation
|
|
C1 clutch
|
• Engages input shaft and intermediate shaft via F4 one-way clutch.
|
|
C2 clutch
|
• Engages input shaft and middle planetary carrier.
|
|
C3 clutch
|
• Engages input shaft and front sun gear.
|
|
C4 clutch
|
• Engages input shaft and intermediate shaft.
|
|
B1 brake
|
• Locks rotation of front planetary carrier.
|
|
B2 brake
|
• Locks rotation of front and middle ring gear.
|
|
B3 brake
|
• Locks F2 one-way clutch outer race.
|
|
B4 brake
|
• Locks rotation of rear ring gear.
|
|
F1 one-way clutch
|
• Locks counterclockwise rotation of front planetary carrier on transmission case.
|
|
F2 one-way clutch
|
• Locks counterclockwise rotation of front sun gear during B3 brake operation.
|
|
F3 one-way clutch
|
• Locks counterclockwise rotation of rear ring gear.
• Locks counterclockwise rotation of middle planetary carrier.
|
|
F4 one-way clutch
|
• Locks counterclockwise rotation of intermediate shaft during C1 clutch operation.
|
