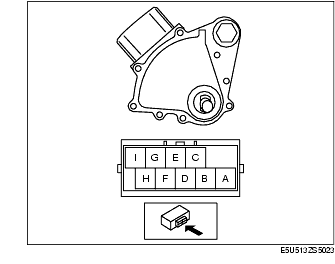

TRANSMISSION RANGE (TR) SWITCH FUNCTION [SJ6A-EL]

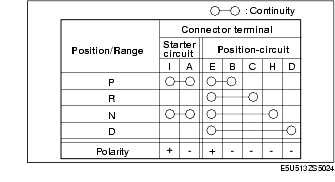

• The TR switch sends information on which range is selected in the automatic transmission using a combination of the position circuit terminals, and its functions are as follows:

1. Enables engine starting only in P or N positions

2. Used as shifting control signals
