COUPLER COMPONENT OUTLINE [SJ6A-EL]

id051311325900

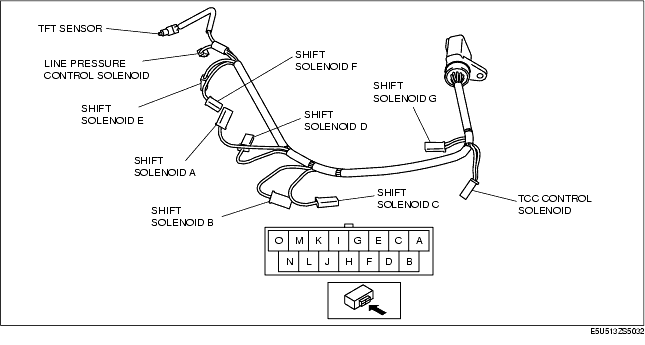

• The coupler component are installed on the transmission case as the grouped connectors of the TFT sensor and solenoids.

Terminal No.

Signal

A
TFT sensor (-)
B
TFT sensor (+)
C
Shift solenoid G (-)
D
Shift solenoid G (+)
E
Shift solenoid F (-)
F
Shift solenoid F (+)
G
TCC control solenoid (-)
H
TCC control solenoid (+)
I
Line pressure control solenoid (-)
J
Line pressure control solenoid (+)
K
Shift solenoid E
L
Shift solenoid D
M
Shift solenoid C
N
Shift solenoid B
O
Shift solenoid A
