SELECTOR LEVER COMPONENT INSPECTION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the shift knob. (See SELECTOR LEVER REMOVAL/INSTALLATION.)

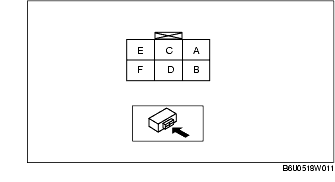

4. Remove the console panel and indicator assembly. (See SELECTOR LEVER REMOVAL/INSTALLATION.)

5. Disconnect the selector lever component connector.

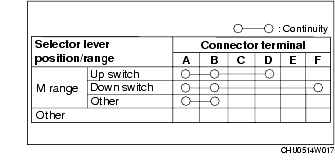

6. Verify continuity as indicated in the table.

• If there is any malfunction, replace the selector lever. (See SELECTOR LEVER REMOVAL/INSTALLATION.)
