SELECTOR LEVER STRUCTURE

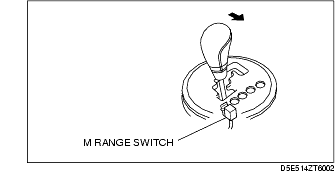

M Range Switch

Outline

• The M range switch detects the selector lever in M range position and sends a manual mode request signal to the TCM.

Operation

• The M range switch is an ON/OFF type switch that turns on when the selector lever is shifted to the M range. It also remains on during up-shift and down-shift operations.

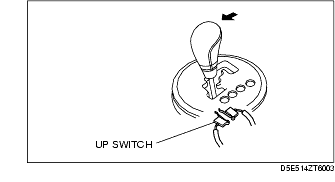

Up Switch

Outline

• The up switch detects an up-shift operation in the M range and sends an up-shift request signal to the TCM.

Operation

• The up switch is an ON/OFF type switch that turns on when the selector lever is in the M range (+) side position.

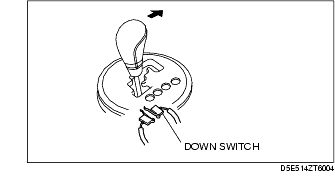

Down Switch

Outline

• The down switch detects a down-shift operation in the M range and sends a down-shift request signal to the TCM.

Operation

• The down switch is an ON/OFF type switch that turns on when the selector lever is in the M range (-) side position.
